DynaTOM
Description

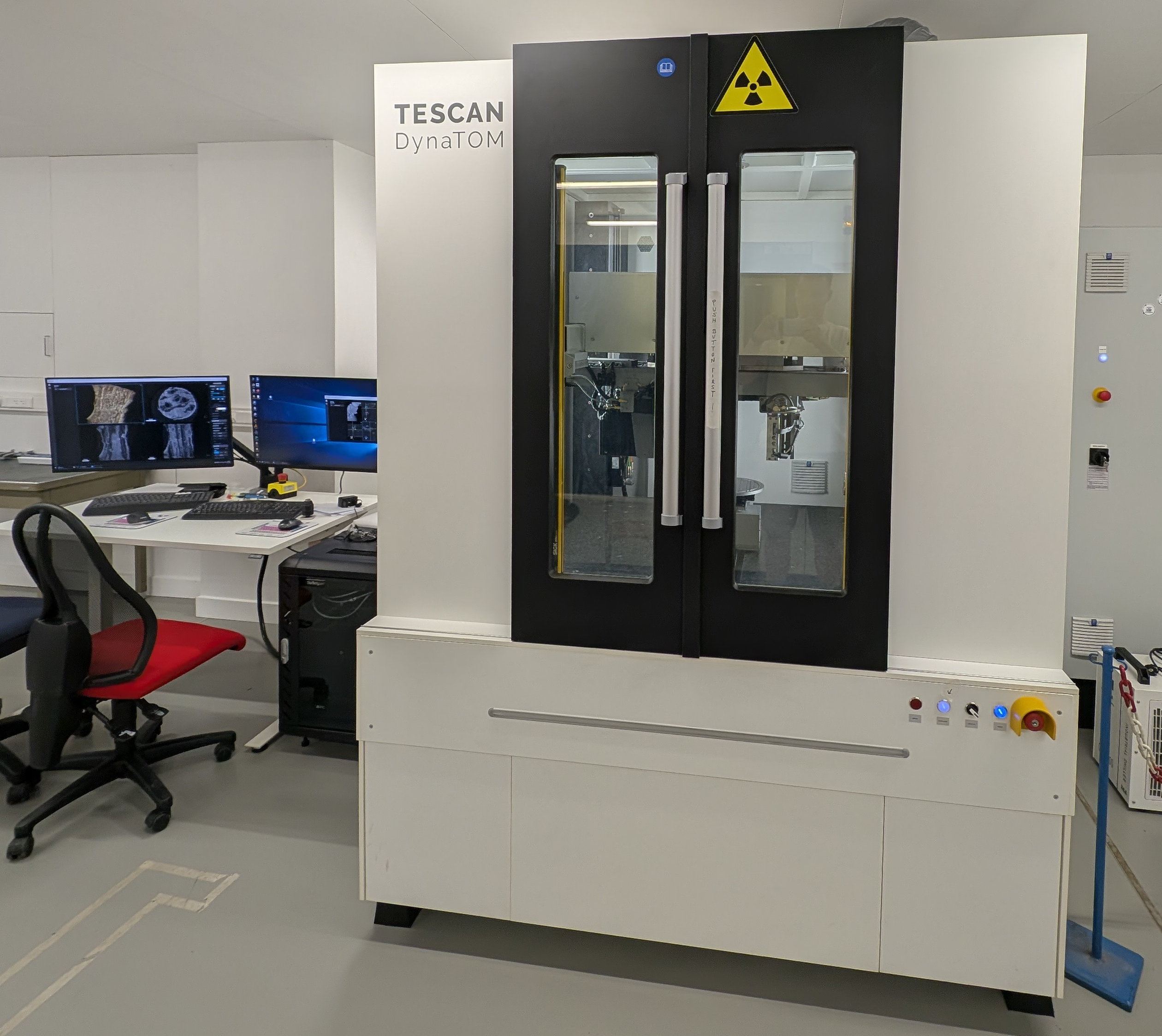

The TESCAN DynaTOM is our general purpose system optimized for in-situ, dynamic imaging of a wide range of samples. The scanner is equipped with a 130 kV X-ray tube and a large 1944×1536 pixels flat panel detector allowing for samples to be imaged at a spatial resolution down to 4 micron.
A great range of different sample sizes can be mounted, with up to 45 centimeter scannable height and a maximum sample weight of 45 kg. Its rotating gantry with a fixed sample allows continuous, non-destructive imaging during in-situ experiments.
The scanner is equipped with a special kit for performing in-situ experiments, allowing for the installation and control of peripheral in situ equipment. Connections include a serial connection in the slip-ring, and an interface panel with AC/DC power, IO ports and RJ45 patch points.
Specifications
- X-ray tube
- 130 kV, max 39 W, W-anode
- 4 µm spot size
- Flat panel detector
- 1944×1536 pixels
- 75 µm pixel pitch
- Gadox scintillator screen
- Volume of interest scanning enabled
- In situ integration kit for peripheral equipment
- Sample limitations*:
- max. 22 cm diameter
- max. 45 cm height
- max. 45 kg load
*Additional limitations may apply depending on sample density and composition
